5787834-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5787834-1
Datasheet:
Description:

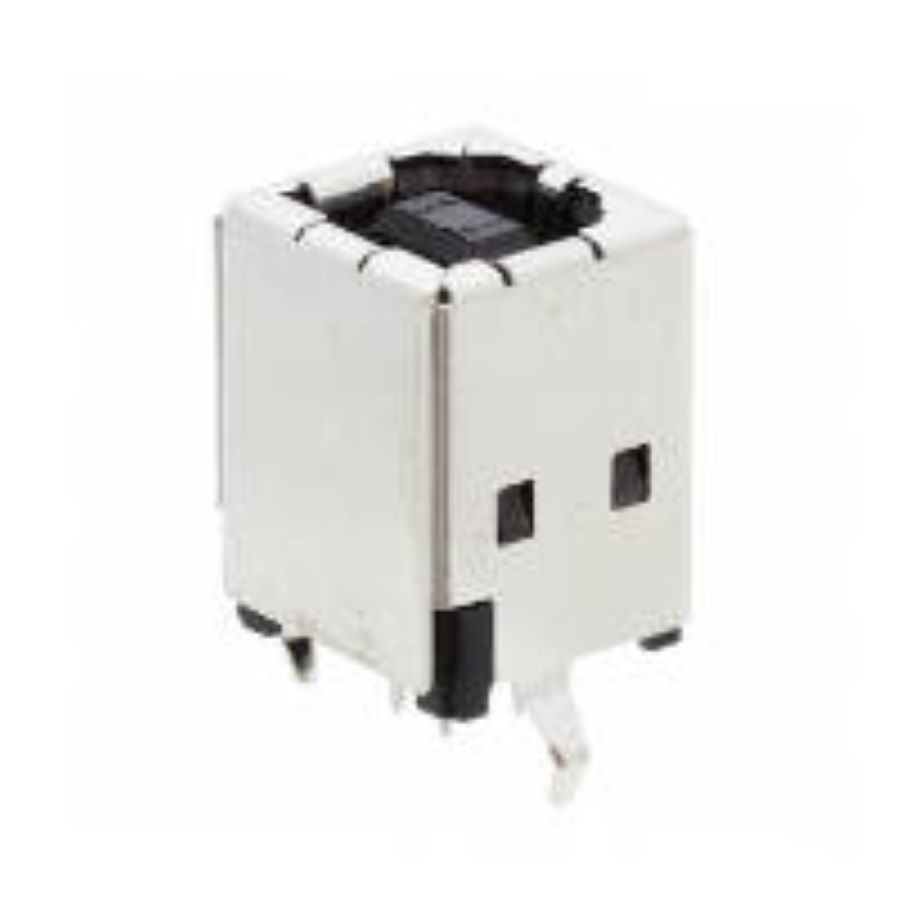

USB Connectors Through Hole USB-B (USB TYPE-B) Receptacle USB 2.0
| Parameter | Value |
|---|---|
| Length | 12.03 mm |
| Width | 12.03 mm |
| Termination | Solder, Through Hole |
| Max Operating Temperature | 185 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 30 V |
| Number of Pins | 4 |
| Packaging | Tray |
| Depth | 11.46 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.5 mm |
| Type | USB-B (USB TYPE-B) |
| Number of Terminals | 4 |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical, Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 4 |
| ELV | Compliant |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle |
| Number of Positions | 4 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Contact Current Rating | 1 A |
| Housing Color | Black |
| Plating | Tin |
| PCB Thickness | 1.57 mm |
| Tail Length | 3.01 mm |
| Plating Thickness | 760 nm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Max RMS Current | 1 A |
| Mounting Angle | Vertical |
Stock: 2245
Distributors
pcbx
pcbxUnit Price$1.13750
Ext.Price$1.13750
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.13750 | $1.13750 |
| 10 | $0.96307 | $9.63070 |
| 25 | $0.90561 | $22.64025 |
| 50 | $0.85158 | $42.57900 |
| 100 | $0.80077 | $80.07700 |
| 300 | $0.75299 | $225.89700 |
| 500 | $0.70806 | $354.03000 |
| 1000 | $0.66581 | $665.81000 |
